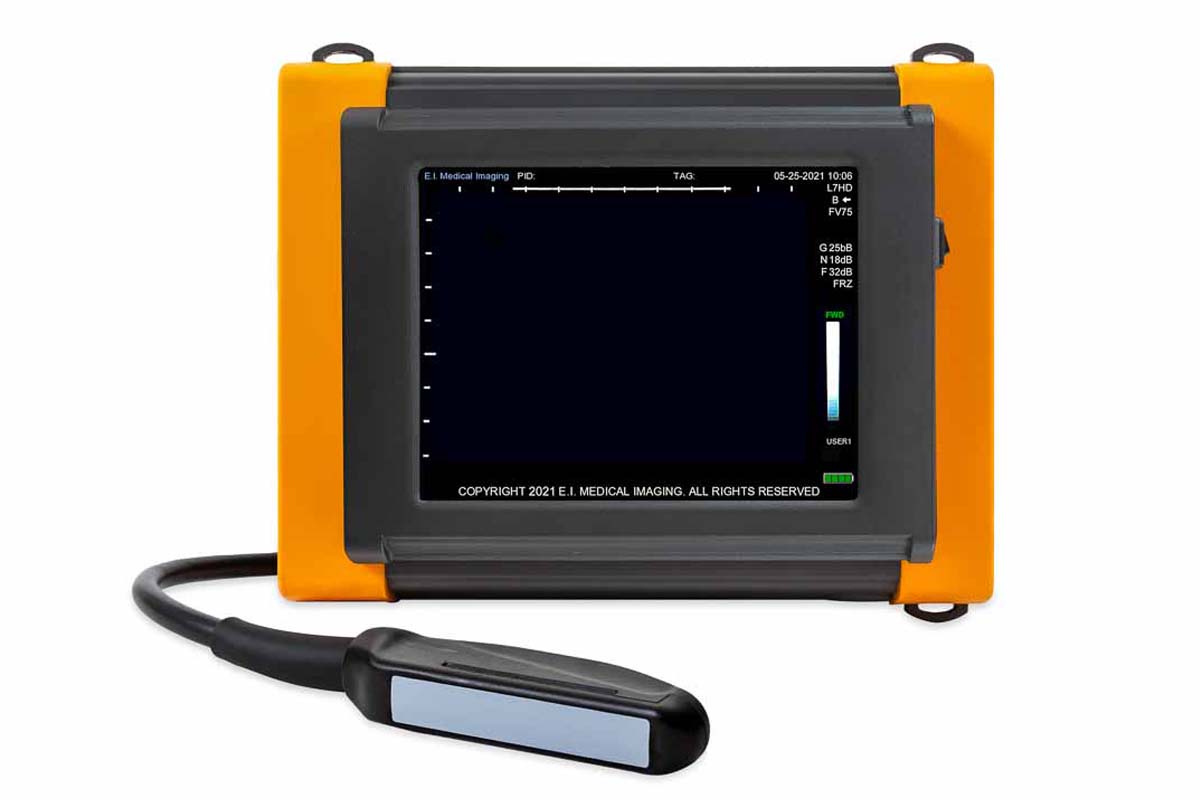

SuperLite HR

SuperLite HR

The IBEX L7HD linear rectal probe  is hardwired to the SuperLite HR.

Hardwired to the high-definition L7HD probe, the 12cm max depth and linear array is the perfect choice for imaging smaller and more superficial structures. Ideal for evaluation of early pregnancies and ovaries in dairy work, equine reproduction, and for scanning lungs. Works with arm-free I.C.E.

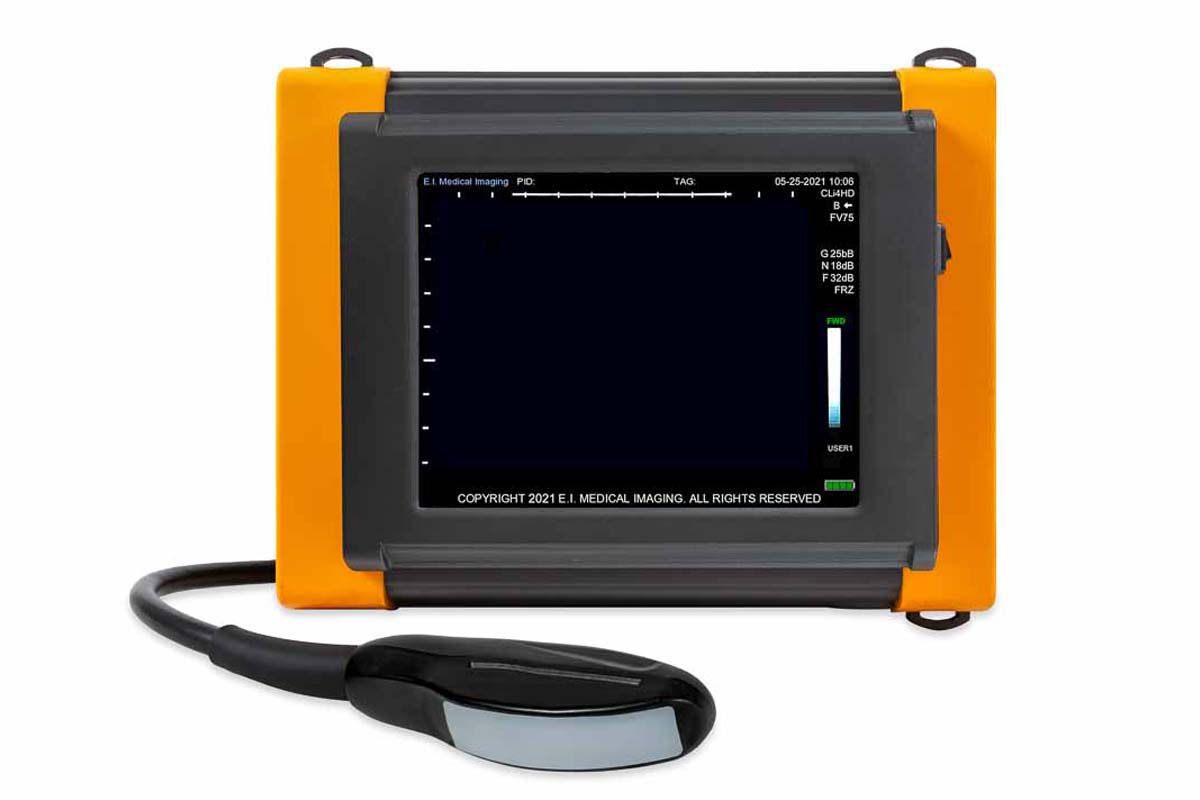

SuperLite/c HR

SuperLite/c HR

The CLi4HD curved rectal probe is hardwired to the HR/c.

With its wider field of view and lower center frequency, the CLi4HD penetrates to 24cm and is an ideal choice for practitioners who are looking to use the arm-free I.C.E. handle, all with the versatility of a built-in screen.

The SuperLite/c HR is best suited for pregnancies, beef cow reproduction, and transabdominal applications.

  • 6.4 in sunlight-readable screen
  • DuraScan® case: water, dust and impact resistant
  • 4 lb [1.8 kg]
  • Sealed side keyboard for ease of use
  • B, B/M modes
  • Auto enhanced field of view [auto adjusts focus, frequency, gain and other parameters]
  • Digital beam-former
  • Gestational tables
  • Stores still frames and video loops
  • Li-Ion smart batteries with 6+ hours of run time
  • Multiple headset options available
  • Linear, convex, micro-convex and specialty transducers available [LITE HR only]
  • I.C.E. arm-free scanning available
  • Standard, extended warranties available
Battery
  • Field-swappable battery
  • Li-Ion smart batteries with up to 6+ hours of run time
Transducers
  • Cables designed and tested to withstand 1.2 million flex cycles
  • Frequencies from 2 to 14MHz
  • See transducers for the LITE HR here
Rugged
  • IBEX LITE HR is barn-ready rugged, designed for the harshest environments
  • Sealed keyboard can be thoroughly cleaned for biosecurity
  • All materials RoHS compliant

Contact Us Today!

Let us know if you have any questions about our veterinary ultrasound platforms, transducers/probes, or accessories.

We'd be happy to schedule a demonstration so you can see our quality and performance for yourselves...
in-person or remote!

Complete the form and we'll get in touch, or call us @ 1.866.365.6596.

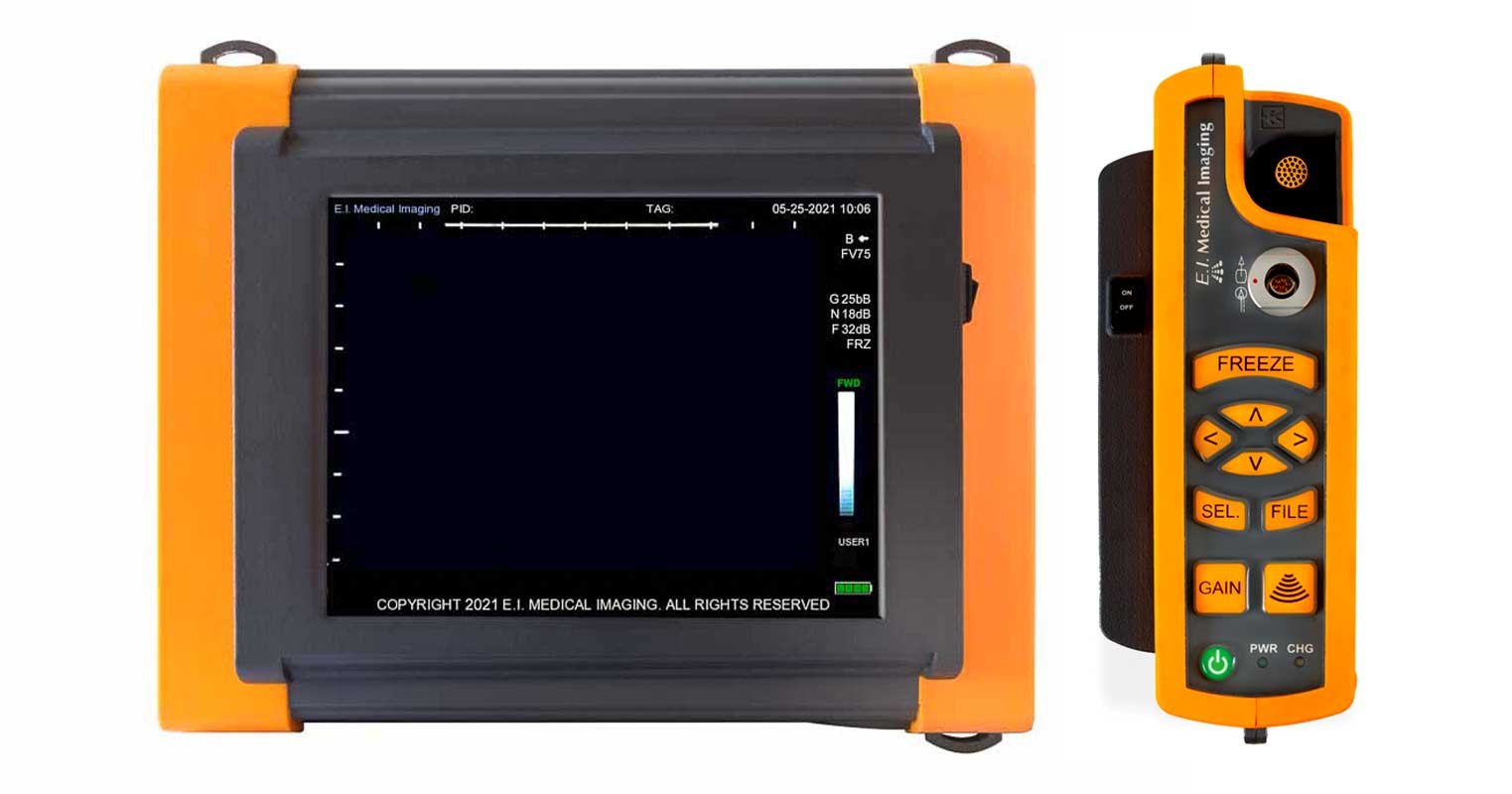

IBEX® LITE HR

Like other products in the IBEX line, the new LITE HR combines ruggedness, simplicity, long battery life, and affordability, making these ultrasound systems a great choice for any portable animal application.
Watch video now!

The HR adds a sun-readable screen to the LITE while still working with video headsets like the i3 LED goggles, offering versatile options for viewing scans in real time.

The IBEX LITE HR is the ideal choice for bovine ultrasound. From basic repro to fetal sexing and calf lungs, the HR has all the features you need in an ultra light, ruggedized package, with the addition of a built-in screen.

A wide variety of transducers and accessories make the LITE HR a versatile ultrasound for any situation. Enhanced battery performance provides 6+ hours of continuous runtime.

HR FAMILY

EIMI offers three variations of the HR. The original HR connects to all PRO/LITE transducers, offering the widest range of scanning options, from repro to MSK to carcass merit. All have a convenient, sealed side keyboard.

The IBEX L7HD linear rectal probe  is hardwired to the HR/r, while the CLi4HD curved rectal probe is hardwired to the HR/c.

For more information, download brochure.
